Dimensor S

Dimensor S

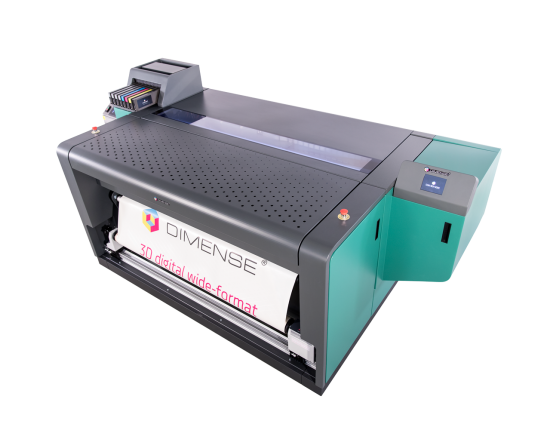

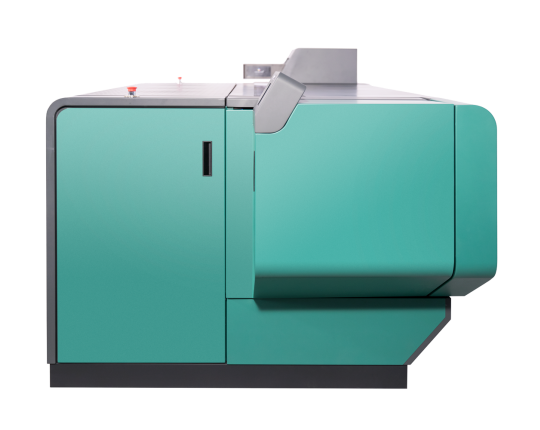

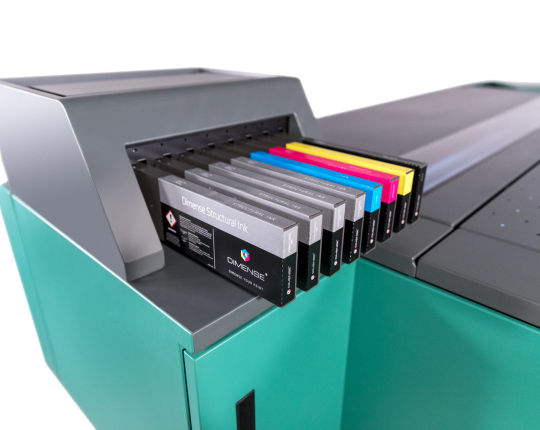

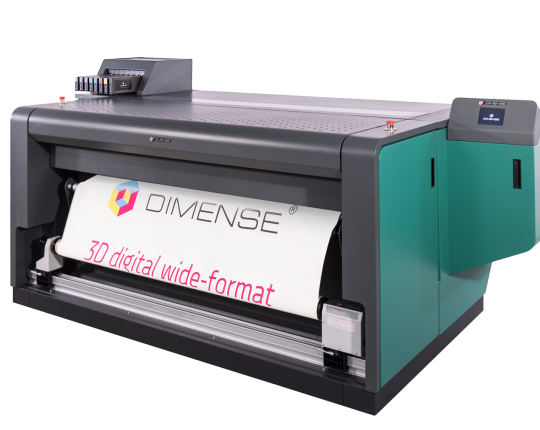

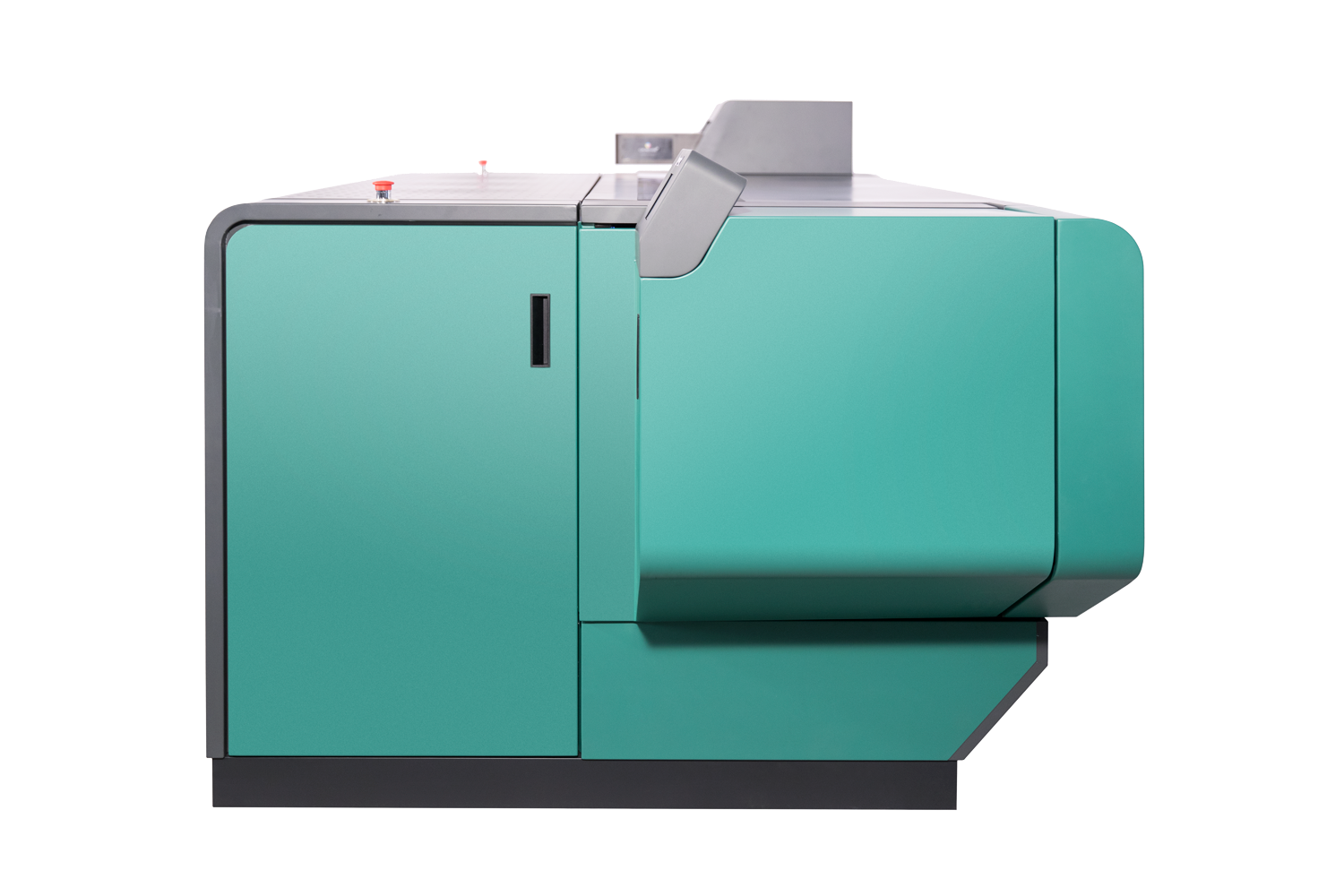

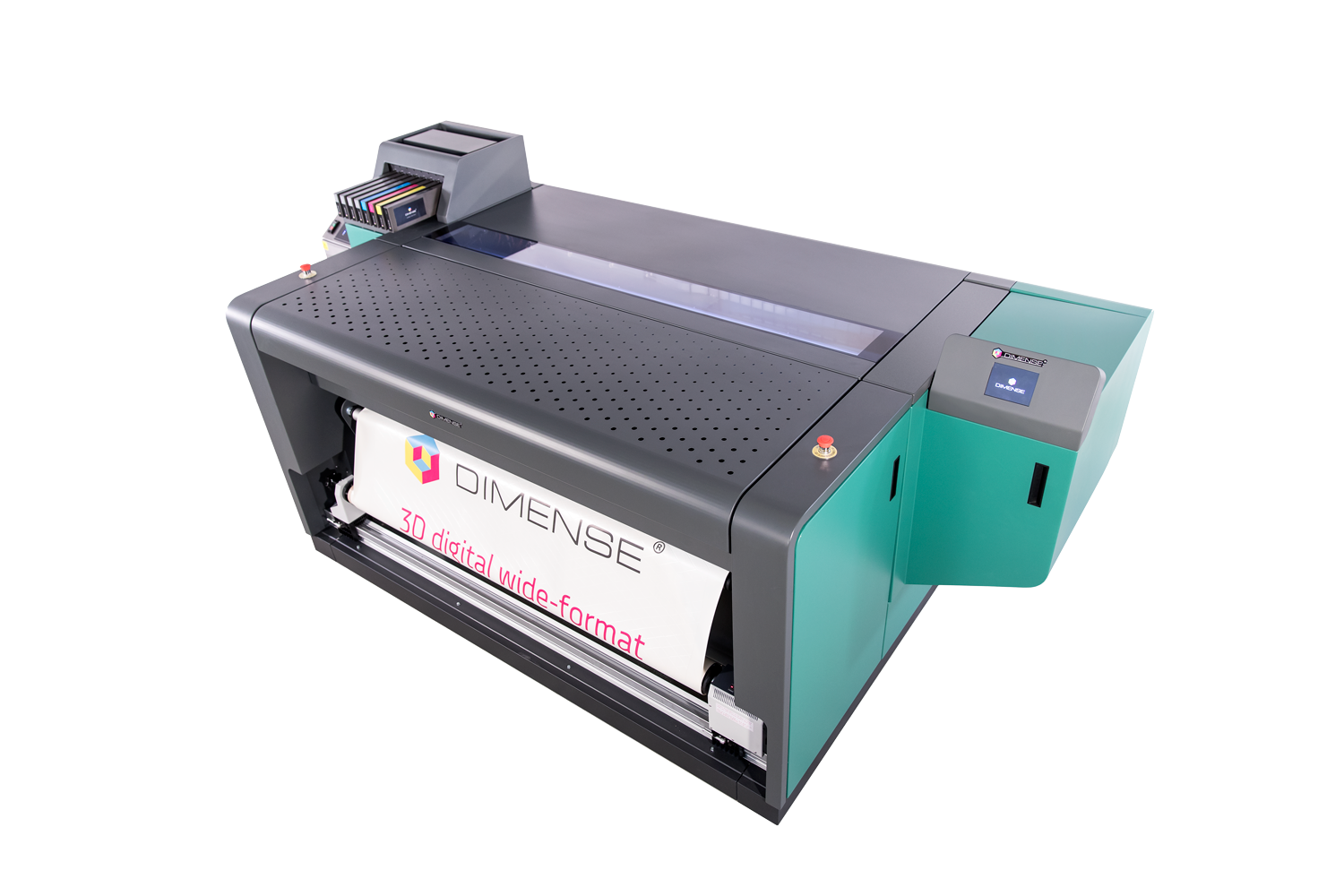

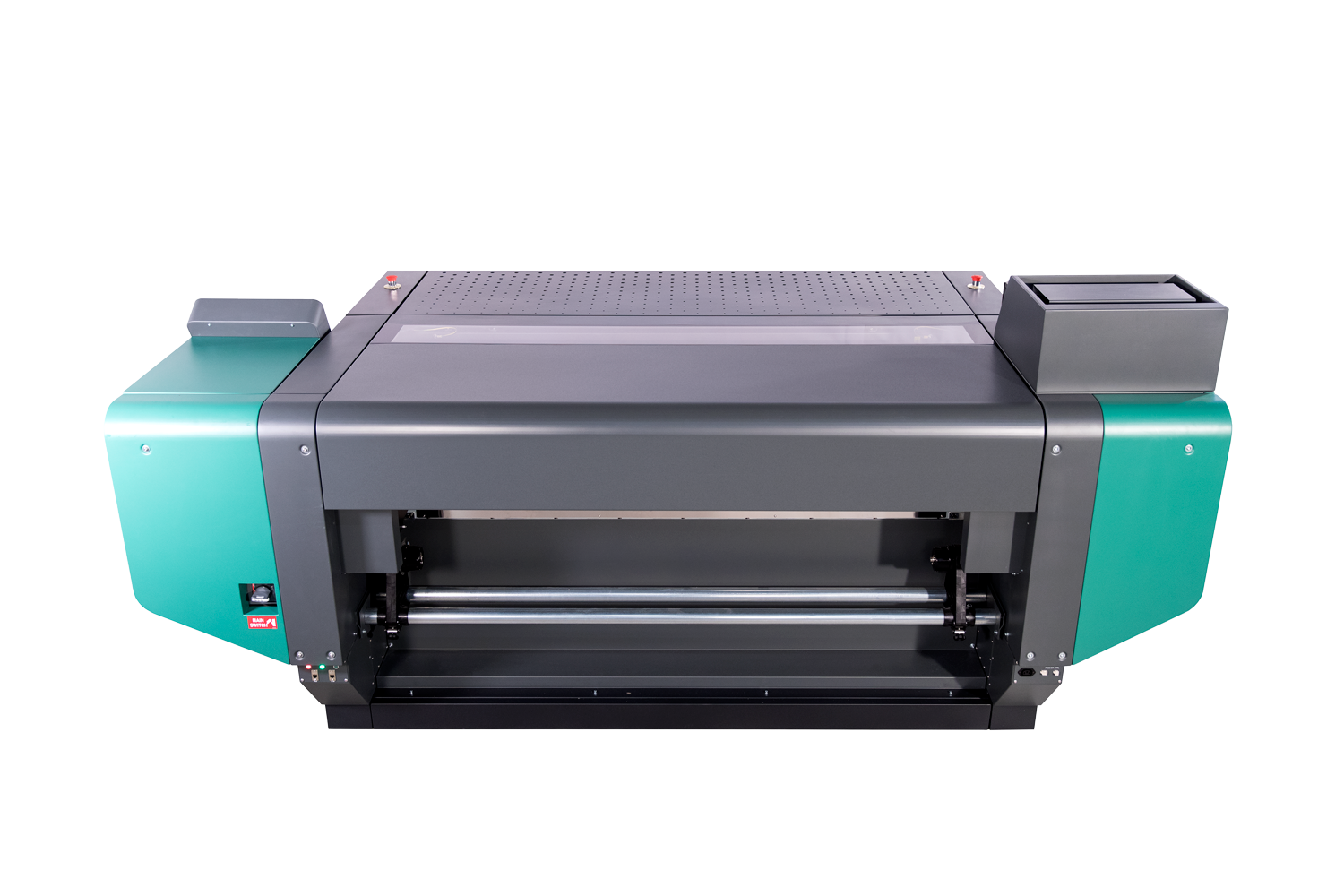

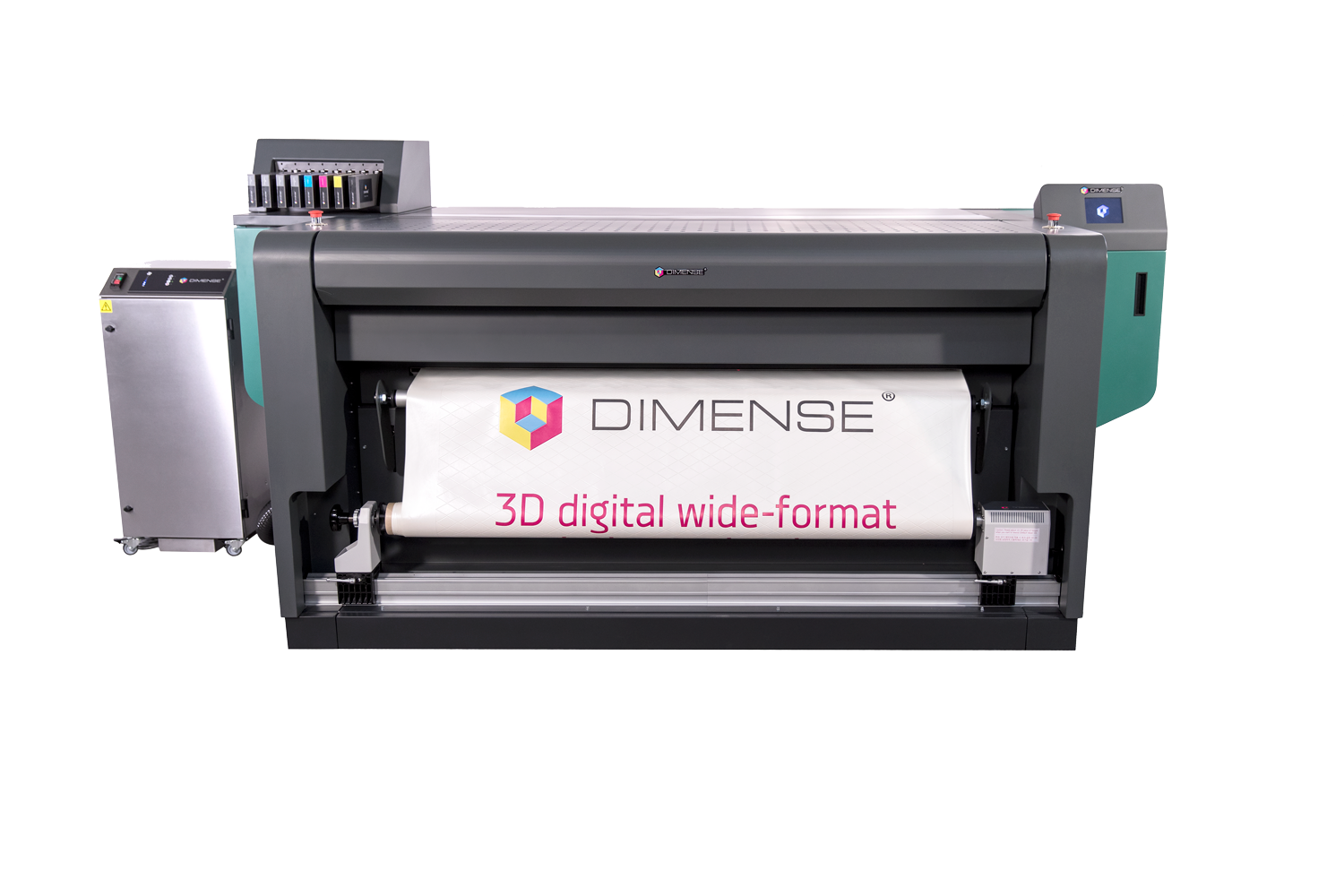

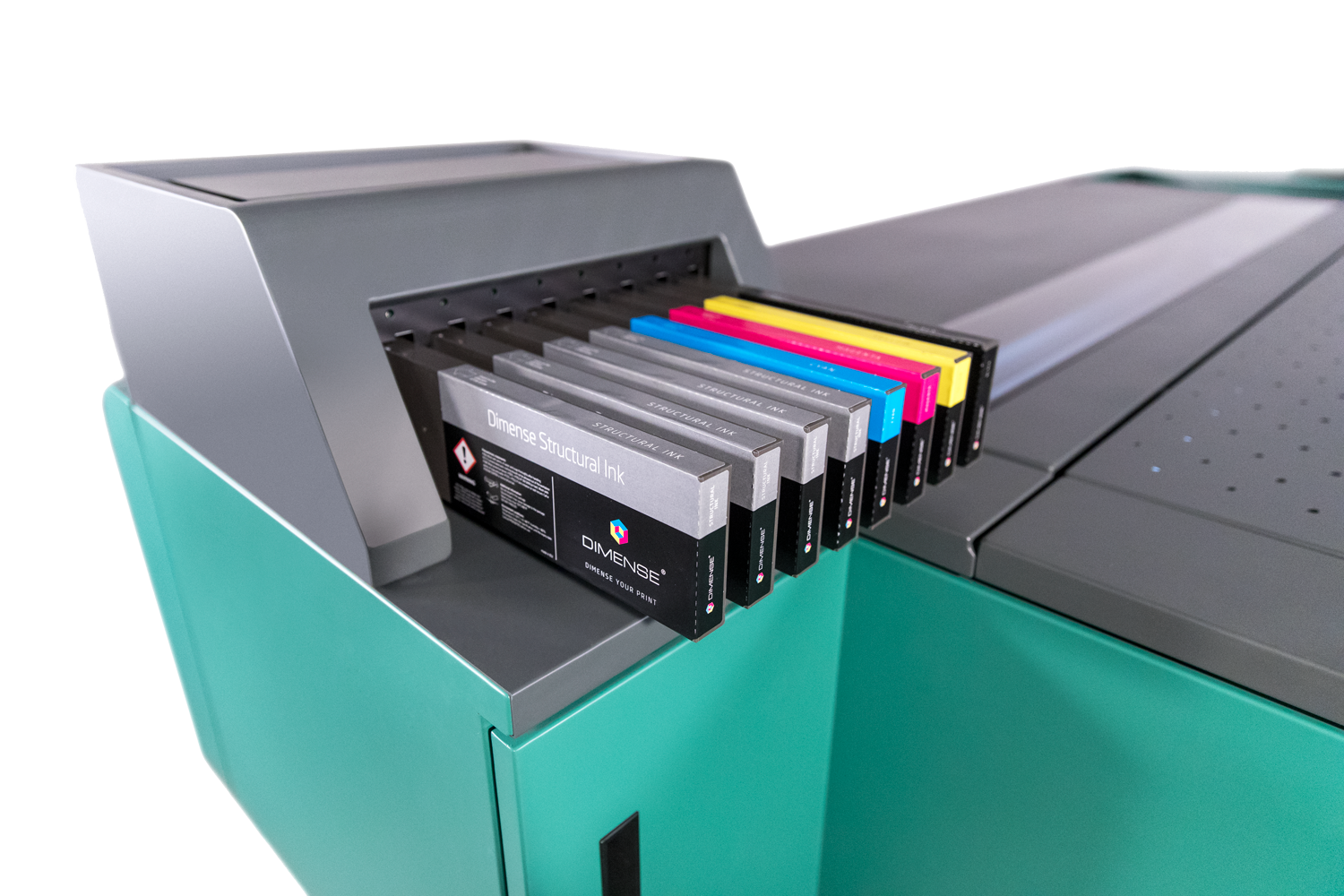

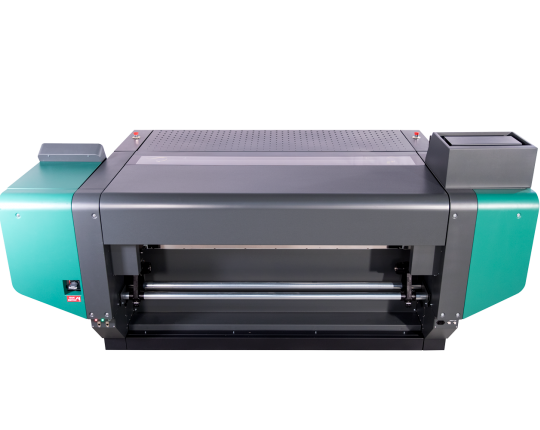

Dimensor S allows simultaneous printing with embossing in a continuous way. It is made of two major components – inkjet printer and calander. For printing digitally embossed images special preparation of files as well as Dimense media and water based latex and structural inks are required.

Key specifications
Print technology Piezoelectric Inkjet
Print head 2 (8 colour channels), arranged in staggered order
Nozzle configuration 8 lines x 180 nozzles
Controlling mechanism Touch screen system
Temperature control Digital control on five zones
Heating element Working temperature up to 500°C
Temperature accuracy +/-5°C
Fume extraction Digitally controlled system
Guiding mechanism for base material Yes
Calander readiness indicators Yes
Printer measurements & weight
Dimensor S (L x W x H) 2965 x 1543 x 1520 mm
Dimensor S weight 840 kg
Fume extractor weight 75 kg
